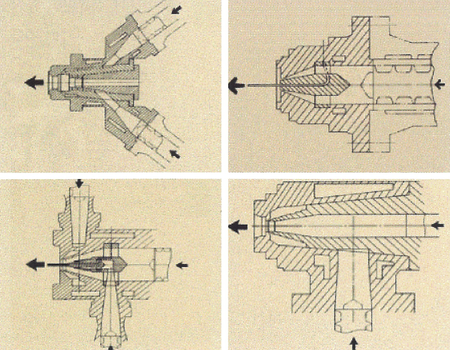

Head design for industrial rubber products

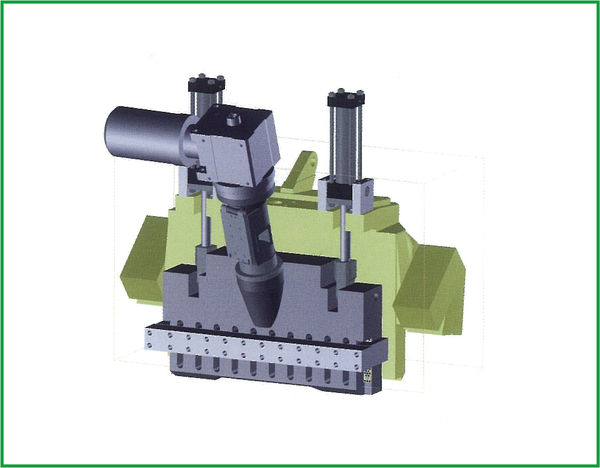

Head design for chimney application

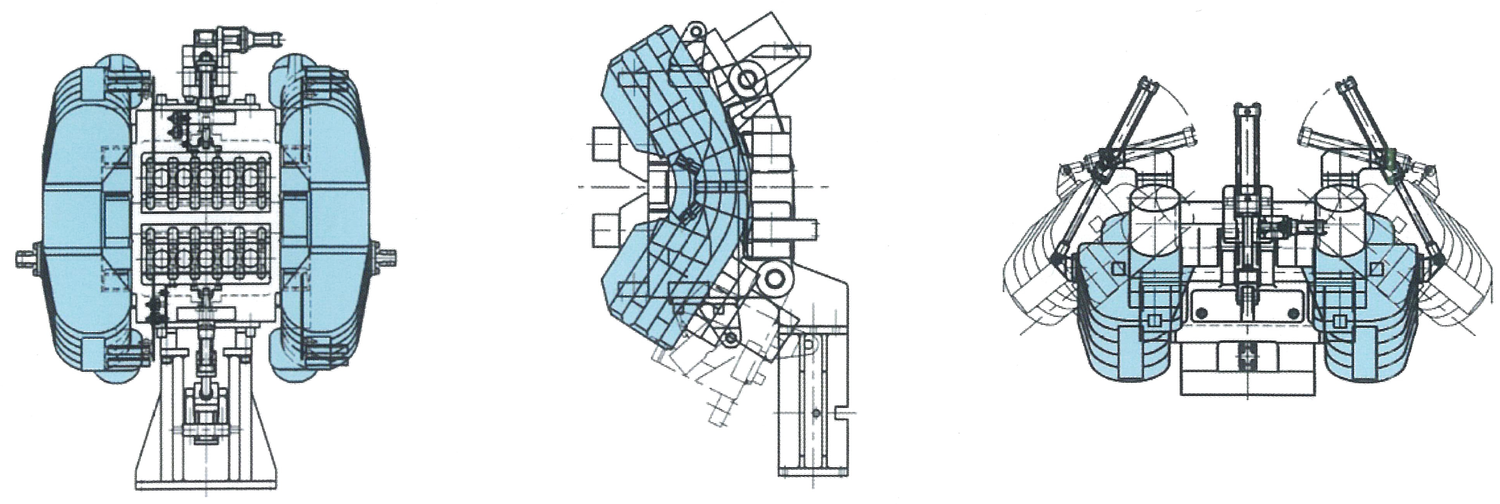

Head figure1

NAKATA extruder head design features

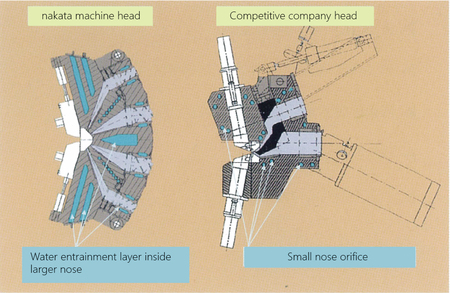

Compared with competitors’, Nakata head designs feature robust clamps.
1. Along with a wedge locking system, this feature ontributes locking efficiency and prevention of rubber leakage.
2. A signature water channel structure inside a head achieves higher temperature control efficiency than the conventional structure.
3. A rubber flow channel features insert plates and a manual alignment can be easily performed.
4. Chimney modification is applicable on an existing head.

Head figure 2
